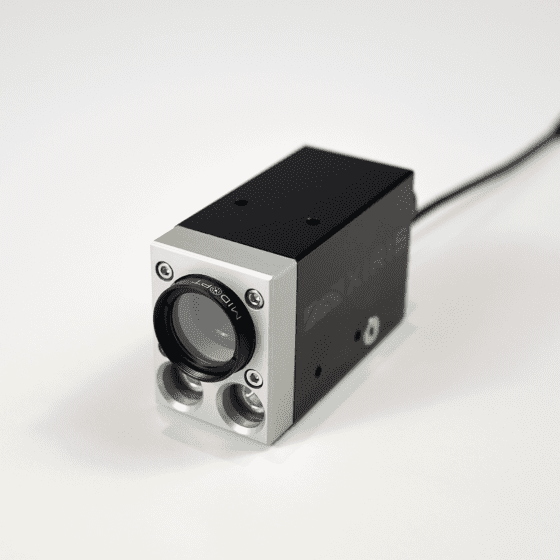

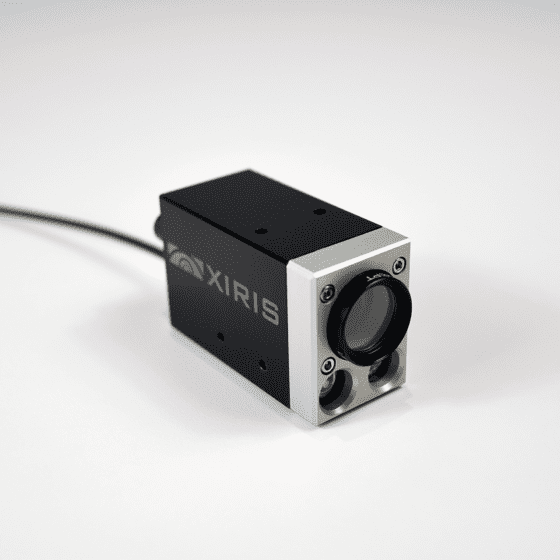

All-Digital Welding Camera for Submerged Arc Applications
The XVC-S100 has been designed to meet fabricators’ requirements to remotely view and monitor Sub-Arc Welding processes, enabling improved operator safety and efficiency.
Gain a detailed view of the Sub-Arc process during setup and achieve in-process monitoring of conditions such as flux coverage or wire-to-joint alignment thanks to the high-resolution, low light sensitivity sensor combined with integrated LED illumination and optics.
Specifications
Accessories
Software
Documents
Service & Support
Specifications
Size: 35 mm (W) x 46 mm (H) x 93 mm (L)
Weight: 550g
Camera Resolution: 1920 x 1080 Pixels
Environment Rating: IP65
Lens: Included S-Mount lens with field adjustable focus
Lighting: 2 High Intensity White LEDs, Controlled via Software
Camera Mount: Bottom, Top or Side using Isolation plate, with ¼” UNC / 4x M3 mm threads
Power: 110/240V AC with Wall Plug Adaptor or 24VDC to Control Box
Compliance: CE, FCC, RoHS

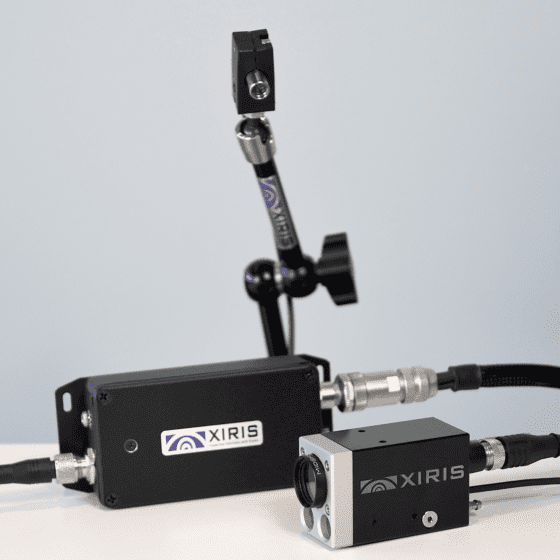

Accessories
Laser Pointer: Class 1M, Red Laser Crosshair, Line, On/Off controlled via software (Optional)
Console Mount: Flexible Mounting Arm (Optional)
Software
The XVC-S100 camera system is fully compatible with Xiris WeldStudio™ 3 and WeldStudio™ 3 Pro software. Xiris WeldStudio™ 3 and WeldStudio™ 3 Pro software provide users with a variety of powerful features for camera control, image processing and display, graphical overlays, Machine Vision tools, video recording and playback.
Using the WeldSDK™ these software components can be customized and fully integrated into your welding automation system. Compatible with Microsoft Windows 10+ and Linux Ubuntu, WeldSDK™ includes the Xiris camera driver and controls, and graphic tools to provide the user with crosshairs and targets.
Software Upgrades Xiris releases a major new release of software on average once a year. Minor upgrades occur more frequently. Our technicians may upgrade client systems while on site at a client’s request.

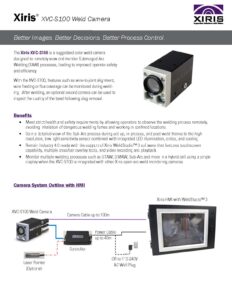

Documents
Service & Support
Contact Support – Monday – Friday: 0830 – 1730 Eastern Standard Time
Phone: +1.905.331.6660
Fax: +1.905.331.6661
Email: support@xiris.com
Our partners also provides support and service to our clients at many locations around the world.
Service & Training
Xiris provides its customer base with various levels of service, including new system installation and training, system upgrades and preventative maintenance programs. Many of our partners are trained to offer additional support on our systems.
System Upgrades
Many of our older systems in the field have been upgraded to allow the use of new hardware and software features including improved system reliability, system security, production reporting and updated operating systems. Do you have an older Xiris vision system? Please call your Xiris account manager to receive more information regarding the immediate benefits of a system upgrade.
Preventative Maintenance Visits
Many of our clients request a Preventative Maintenance visit in conjunction with a new system delivery or as a separate service. Our technicians will optimize the performance of the system, upgrade software as applicable, look for potential part failures and conduct training as desired by the client during the visit.
Warranty
All Xiris systems are shipped with a 15-month warranty from the day of shipment from Xiris or a 12-month warranty which commences from the first day of use (whichever comes first). Please have your Xiris system serial number available when you call so we can determine your system warranty status as well as your support plan level.
Once your Warranty expires, your Xiris Account Manager will contact you to discuss your long term support needs. Xiris offers different levels of support plan.
Let us show you the difference of the XVC-S100
Join us for a video demo and info session
