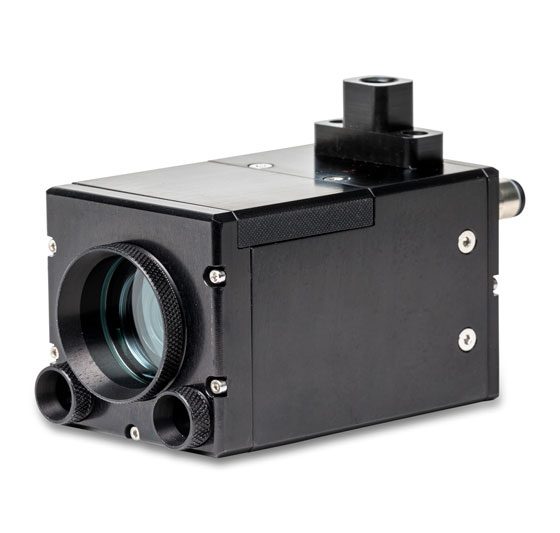

Rugged & Robust Weld Camera for Submerged Arc Welding
Out-of-the-box and affordable, the XVC-S allows manufacturers to be more productive and better meet the quality demands of the market by providing a superior monitor solution for submerged arc welding.
The XVC-S can act as a set-up tool to position the welding torch prior to welding or provide a means to adjust the welding position or welding parameters while the sub arc weld process is underway.
Specifications
Accessories
Software
Documents
Service & Support
Specifications
Size: 60L x 60W x 100H mm / (2.4 x 2.4 x 3.9”)
Weight: 700 g / 24.7 oz.
Dynamic Range: 60 dB
Camera Output: S-Video (Y/C Output 0.75 p-p)
Weld Splatter Protection: Removable, Protective Glass Cover
Lighting: 2 Solid State Auxilliary 2 white, high intensity LEDs with adjustable brightness
Camera Mount: Top or Bottom via 2 X M3 screws
Cable Lengths: 10 / 20 / 30 m
External Power Supply: Brick 100 – 240 VAC 50/60 Hz Autosensing, 5A.
Display Console: Universal Enclosure, 15” LCD 1024 X 768 display with High Bright Contrast auto adjust brightness and Integrated cross hair overlay for target reference point. Feature rich push button menus for LCD & Cross Hair configuration.
Accessories
Camera Cooling: Air filter + regulator with Vortex cooler
Camera Support: Articulated Arm with Super Clamp Mount
Console Mount: Wall Mount support / Radial Arm support
Software
The XVC-S camera system is fully compatible with all Xiris WeldStudio™ software suites. Xiris WeldStudio™ software provide users with a variety of powerful features for camera control, image processing and display, graphical overlays, and video recording and playback. Compatible with Microsoft Windows 7/10 and Linux Ubuntu/Redhat, it includes the Xiris camera driver and controls, and graphic tools to provide the user with crosshairs and targets.
Using the WeldSDK™ these software components can be customized and fully integrated into your welding automation system.
Software Upgrades Xiris releases a major new release of software on average once a year. Minor upgrades occur more frequently. Our technicians may upgrade client systems while on site at a client’s request.
Documents
Request a Datasheet

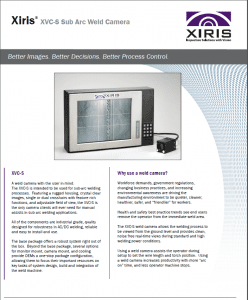

XVC-S

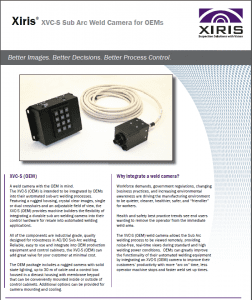

XVC-S OEM Datasheet
Service & Support
Contact Support – Monday – Friday: 0830 – 1730 Eastern Standard Time
Phone: +1.905.331.6660
Fax: +1.905.331.6661
Email: support@xiris.com
Our partners also provides support and service to our clients at many locations around the world.
Service & Training
Xiris provides its customer base with various levels of service, including new system installation and training, system upgrades and preventative maintenance programs. Many of our partners are trained to offer additional support on our systems.
System Upgrades
Many of our older systems in the field have been upgraded to allow the use of new hardware and software features including improved system reliability, system security, production reporting and updated operating systems. Do you have an older Xiris vision system? Please call your Xiris account manager to receive more information regarding the immediate benefits of a system upgrade.
Preventative Maintenance Visits
Many of our clients request a Preventative Maintenance visit in conjunction with a new system delivery or as a separate service. Our technicians will optimize the performance of the system, upgrade software as applicable, look for potential part failures and conduct training as desired by the client during the visit.
Warranty
All Xiris systems are shipped with a 15-month warranty from the day of shipment from Xiris or a 12-month warranty which commences from the first day of use (whichever comes first). Please have your Xiris system serial number available when you call so we can determine your system warranty status as well as your support plan level.
Once your Warranty expires, your Xiris Account Manager will contact you to discuss your long term support needs. Xiris offers different levels of support plan.
