Xiris Weld Monitoring Cameras

Xiris Weld Cameras provide the clearest views of the brightest features of a weld arc while still being able to see the surrounding darker background areas such as the weld pool and weld seam and are suitable for a wide range of applications.

Welding image - welding camera
Weld Lipstick camera - Welding camera

XVC-310 – Lipstick Weld Camera

NEW camera for welding! An advanced solution tailored for GTAW and Plasma processes in confined spaces like Narrow Gap and Orbital applications.

With its compact design, 120+ dB HDR capability, and seamless integration options, the XVC-310 ensures clear monitoring of TIG tips, melt pools, weld beads, seams, parent material, and wire feeding.

XVC-1000 weld camera - welding camera - welding image

XVC-1000/XVC-1100 – Welding Camera

A fully digital weld camera intended for monitoring all open arc welding processes for OEMs, Advanced End Users or Lab Environments, featuring:

  • High Dynamic Range (HDR) Images in Monochrome (XVC-1000) or Color (XVC-1100)
  • Remote Monitoring from up to 100 Metres
  • C/CS Mount for custom optics
  • Up to 55 fps @ 1280 x 1024
Weld Camera Xiris XVC-1000e - Weld image

XVC-1000e/XVC-1100e – Welding Camera

A ruggedized weld camera for production and harsh environments that can be provided as a standalone camera, or packaged as a complete system with accessories. Same base features as XVC-1000/1100 but with:

  • High Dynamic Range (HDR) in Monochrome (XVC-1000e) or Color (XVC-1100e)
  • IP65 rated air- or water-cooled housing
  • Integrated LED lighting and optics with motorized fine focus
  • Replaceable front window for spatter/smoke protection

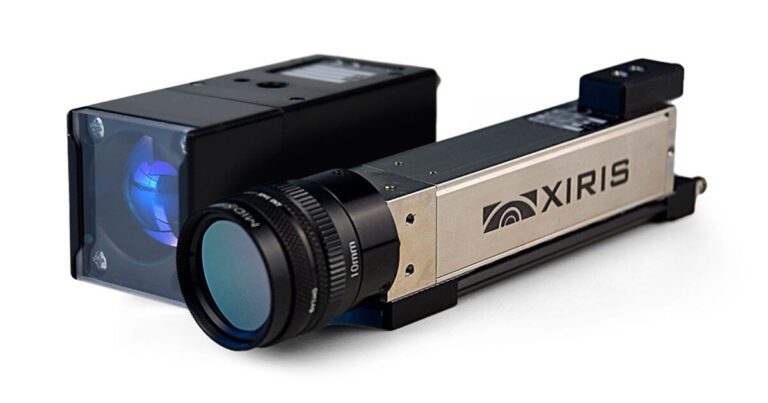

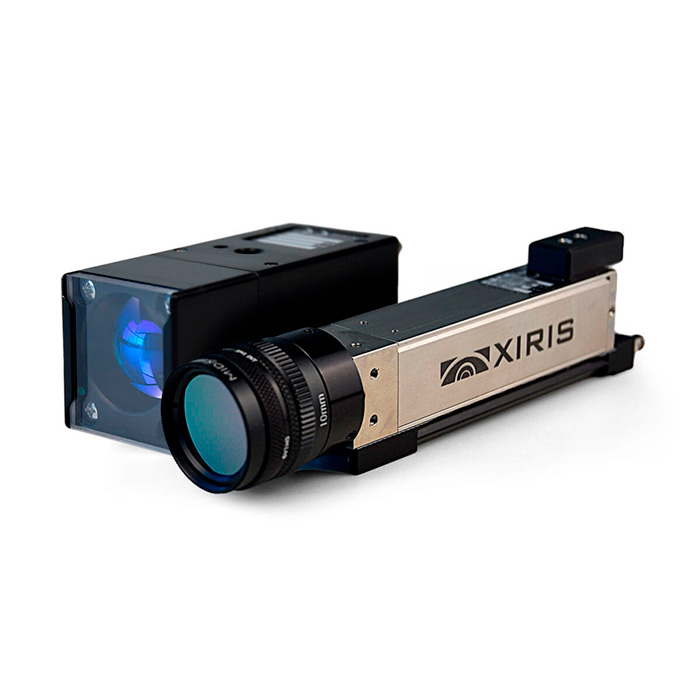

XVC - 700 family cameras for welding - weld cameras - weld image

XVC-700 / XVC-710 / XVC-750 Welding Cameras

A next-generation weld camera specifically designed for integration with welding automation in spaces too small for traditional weld cameras, featuring:

  • High Dynamic Range (HDR) imaging: XVC-700 is Monochrome, XVC-710 is color, and XVC-750 is Near InfraRed (Monochrome)
  • Slimline, lightweight form factor
  • Broad array of compact S Mount optics and accessories
  • Configurable with off-axis optics for simplified installations
XVC-S100 - Weld Camera - Weld Image

XVC-S100 Welding Camera

The XVC-S100 has been designed to meet fabricators’ requirements to remotely view and monitor Sub-Arc Welding processes, enabling improved operator safety and efficiency.

  • Easily record and playback images
  • Uses Xiris WeldStudio™ 3 software, featuring touchscreen capability and multiple crosshair overlay tools
  • Integrate two weld cameras, including an open-arc camera
  • Add an optional laser pointer accessory

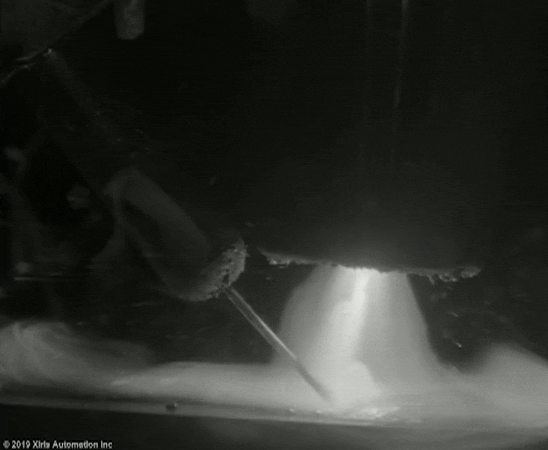

XVC-S Submerged Arc Weld Camera - Weld image

XVC-S – Weld Camera

Out of the box and affordable, the XVC-S is the ideal weld camera monitoring solution for submerged arc welding.

  • High Sensitivity Color Camera in a rugged, air cooled housing
  • Adjustable field of view
  • Cross Hair Generator
  • Integrated LED Light Sources
  • Rugged Monitor Enclosure
WeldStudio™ Pro - weld camera software - weld image

WeldStudio™ 3, WeldStudio™ 3 Pro and WeldSDK

WeldStudio™ 3 is included with purchase of all XVC weld cameras. It includes access to standard tools such as the Recipe Management system for easy and fast set-up and configuration, advance image processing, and the ability to remotely view, record, and playback welding processes.

WeldSudio™ 3 Pro is for advanced users who would benefit from machine vision and thermal measurement tools such as blob segmentation, edge, and thermal temperature reading tools. This version of the software program comes included with purchase of the XIR-1800 thermal camera.

The WeldSDK™ (software development kit) allows advanced Users and OEMs to create custom image processing & display applications for integration into welding machines.

Xiris Weld Mic - Weld Sound - Weld Camera Mic - Weld image

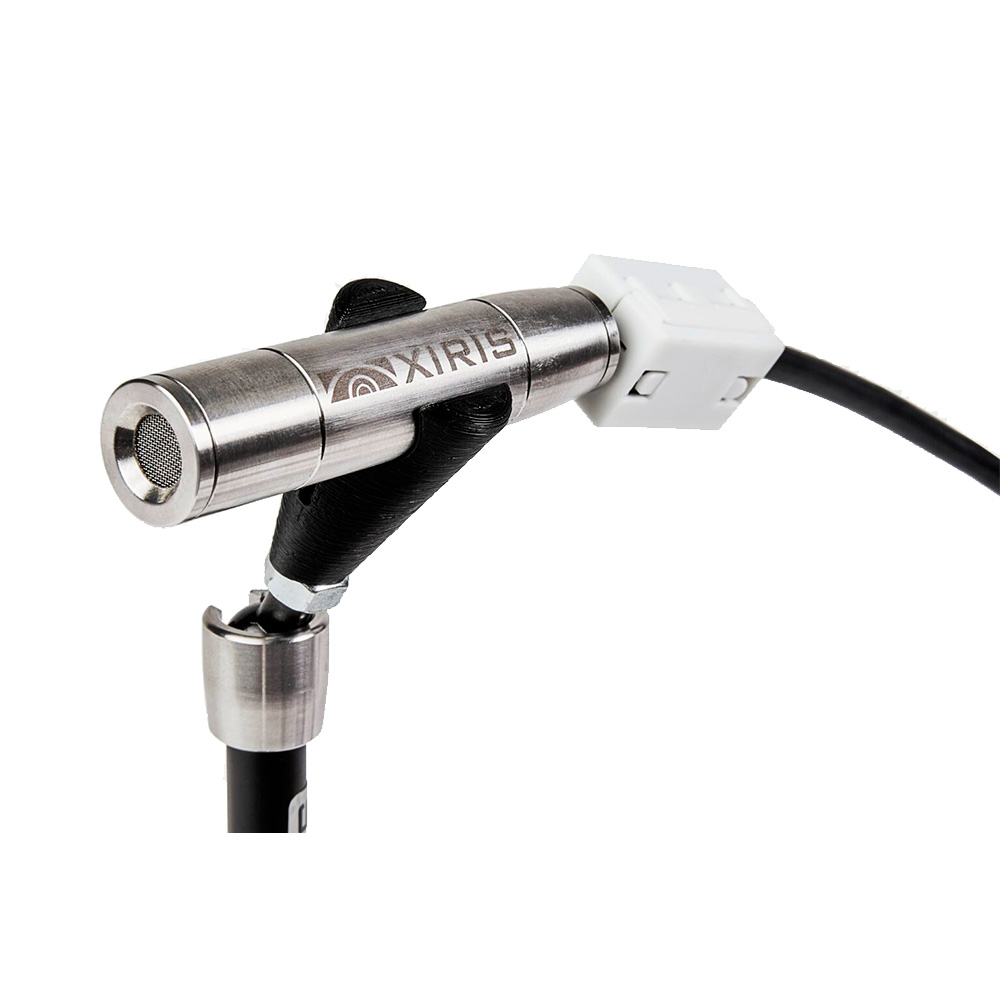

WeldMic™

A robust welding microphone specifically designed for integration with Xiris weld cameras, allowing operators to remotely hear, record and playback welding sound to further enabling process optimisation.

Incorporating directional pickup, noise reduction electronics and 10 Band EQ, WeldMic™ provides clear audio transmission that is integrated with the welding video.

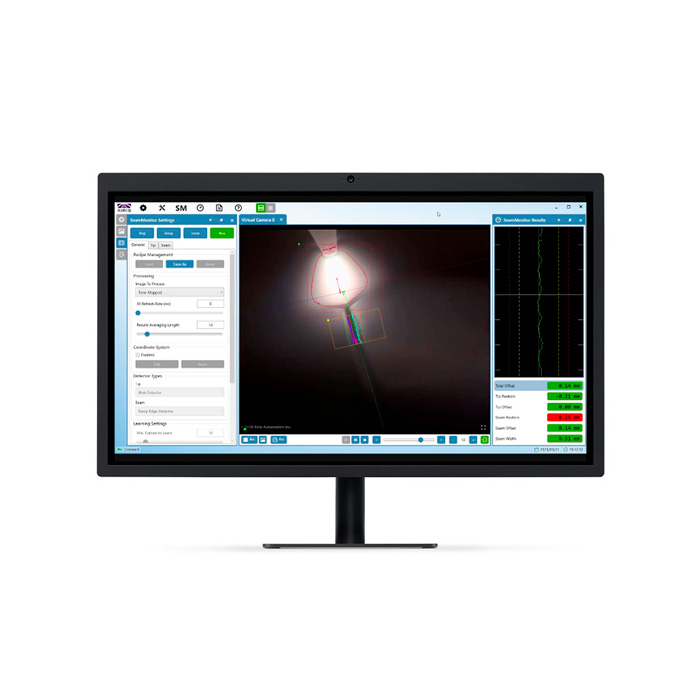

Xiris Seam Monitor - Weld camera software - weld image

SeamMonitor™

The SeamMonitor™ system measures the alignment of the weld seam relative to the torch tip, the width of the weld seam and the torch tip condition. The system includes a Xiris open arc weld camera system, industrial HMI controller, and SeamMonitor™ software.

  • Measures seam width and alignment movement history for process monitoring
  • Automatically alerts the operator when out-of-tolerance weld conditions occur
  • Integrates with all Xiris High Dynamic Range (HDR) cameras in monochrome or color
  • Configurable optics that can be adjusted to suit most common welding environments
  • Integrates with other automation hardware and process monitoring systems
Xiris Weld Camera Enhancements - Weld camera kit - weld image

Weld Camera Enhancements

Xiris offers various weld camera enhancements to augment and customize your welding processes. Products offered include:

  • Xiris WeldMic™
  • Xiris Camera Trigger Kit
  • Xiris CellView Camera
  • Xiris HMIs and PC Options
